Overview
| The Ultra-Fast Automated Ultrasonic Testing (UAUT) system represents a cutting-edge advancement in non-destructive testing, offering extensive customization options. It leverages advanced techniques such as Ultrafast AUT(Corrosion Mapping), Autoamted Phased Array, Total Focusing Method TFM, and Time of Flight Diffraction (ToFD) making it suitable for a wide range of applications including vessels, column and piping inspections. |
Key Feature:
1. High-Speed Scanning:
- X Direction: Operates at 150mm/sec.
- Y Direction: Operates at 750mm/sec.
- Raster Arm: Features 900mm arm length & 500mm arm length
- High temperature: Up to 3700C
2. Advanced Inspection Capabilities:
- UAUT-HIC Inspection: Arise Global utilises a combination of Triplex probe (Trilateral) with two 45-degree shear wave transducers and a dual 0-degree transducer in parallel with A-PAUT/TFM techniques, ensuring excellent performance in weld and Hydrogen Induced Cracking (HIC) inspections.

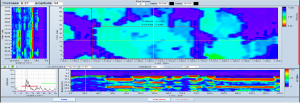

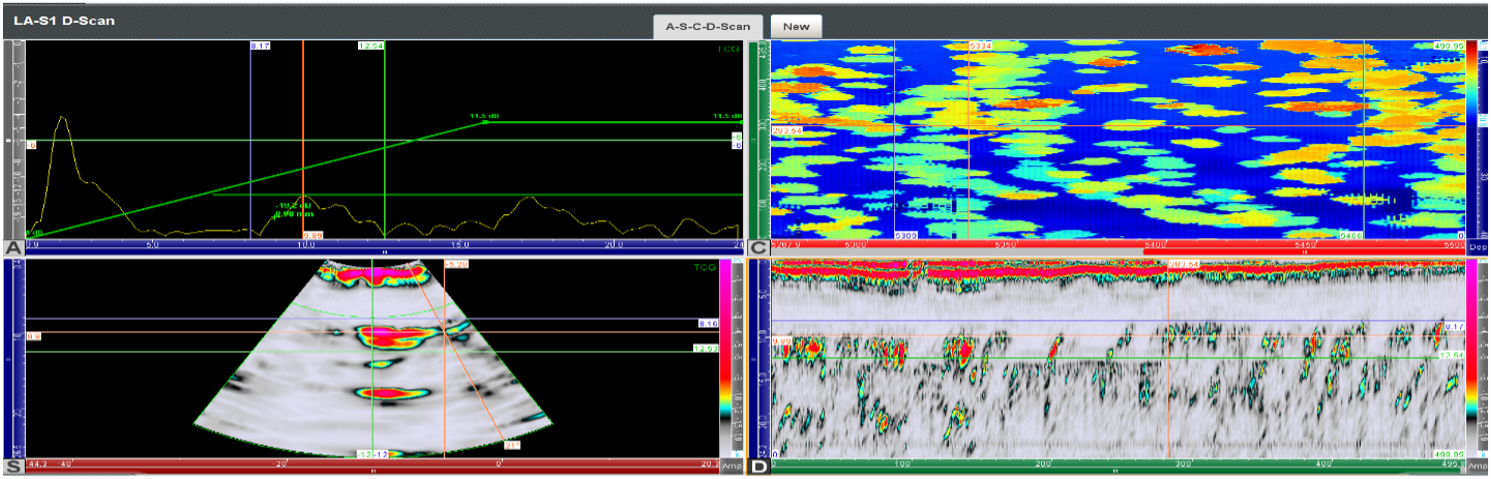

UAUT-HIC Inspection Findings
- UAUT-CM Corrosion Mapping: UAUT-CM utilizes ultrasonic phased array technology for exceptionally accurate measurement and detection of corrosion, erosion, and pitting. By employing multiple individually controlled ultrasonic element transducers, the system produces detailed, high-resolution images of material internal structures. This makes it a valuable tool for integrity assessment.
3D view of UAUT Corrosion Mapping(Single Scan)
3. Operational Efficiency:
- Ultra-Fast AUT Inspection: Automation and advanced technology enable quick HIC inspections.
- Enhanced Detection: Automated Phased Array, ToFD, and TFM provide a comprehensive detection approach, ensuring precise and reliable results.
- Speed Enhancements: Significantly faster inspection processes enhance operational efficiency.
- Accuracy: Ensures high accuracy in defect/indication detection, improving reliability when inspecting base metal, weld & HAZ.
- Minimized Downtime: Reduces inspection downtime and optimizes overall operational efficiency
UAUT-CM with phased Array Technology
Industrial Applications:
1. Oil and Gas:
- Pipeline Inspections
- Vessels and column inspections
- Storage tanks
- Spheres
- Drum
- Heat exchangers
- Headers
- Crude Oil Transfer Lines
- Slug Catchers
2. Manufacturing:
- Raw material inspection for Plates and pipe prior to fabrication.
- Vessels, Tanks, Spheres, Drums, etc…
- Quality Control: Improves processes to maintain high standards and product integrity.
3. Additional Advantages
- Real-Time Image Display: Provides immediate visual feedback during inspections.
- High Detection Probability: Up to 0.5 mm scan grid for detailed inspections.
- Wide Temperature Range: Functional up to 70˚C and available upto 370 ˚C using the special high temperature Thermal scanner.
- Versatility: Suitable for any ferrous item from 4” NB to flat plates.
- Durability and Reliability: Field-proven to withstand harsh industrial environments.
- Maintenance Efficiency: Reduces the need for scaffolding and does not require paint removal, lowering overall maintenance costs.
